Protection Technical Textiles


High visible, waterproof, flame retardant, antistatic, chemical resistant workwear fabrics.

Protection Technical Textiles
Aramid D50 Pike
220 gr/m2, 93% m-Aramid 5% p-Aramid 2% Carbon, Inherent Flame Retardant, Antistatic Pique Knit Fabric
93% m-Aramid 5% p-Aramid 2% Carbon Flame Retardant Antistatic Pique Knit Fabric

93% m-Aramid 5% p-Aramid 2% Carbon, inherent flame retardant antistatic pique knit fabric.


Aramid d50 Pike fabric is universal flame retardant knit fabric for many applications.


Aramid D50 Pike is inherent flame retardant with EN 11612 certification.

Suitable for antistatic applications, certified for EN ISO 1149.

It provides arc flash protection with EN 61482 class 1 (4 kA) certification.


Technical Parameters

Fiber 93% m-Aramid (m-AR) 5% p-Aramid (p-AR) 2% Carbon (CF) EN ISO 2076
Yarn 40/2 Ne Combed EN ISO 2060
Weight 220 ±5 gr/m2 EN ISO 3081
Width 1800 ±20 mm EN ISO 3932
Bursting strength > 1200 kPa(kN/m2) EN ISO 13938-1
Dimensional Change -5% < Length < +5% ; -5% < Width < +5% EN ISO 5077
Rubbing Fastness 4-5 EN ISO 105 X12
Perspiration Fastness 4-5 EN ISO 105 E04
Washing Fastness 4-5 EN ISO 105 C06
Dry Cleaning Fastness 4-5 EN ISO 105 D01
Hypochlorite Fastness 4-5 EN ISO 105 N01
Peroxide Fastness 4-5 EN ISO 105 N02
Hot Press Fastness 4-5 EN ISO 105 X11
Light Fastness 4-5 EN ISO 105 B02
Perspiration Light Fast. 4-5 EN ISO 105 B07
pH 4.0-7.5 EN ISO 3071
Azo Test No Azo Colorants. EN ISO 14362-1
Application Flame Retardant Universal T-Shirt
Quality Management Done ISO 9001
Antistatic Done EN ISO 1149-5
Flame and Heat Protection Done EN ISO 11612
Arc Protection Class 1 (4kA) EN ISO 61482-1-2
ATPV > 7 cal/cm2 EN ISO 61482-1-1


Technical Documents

>> Aramid D50 Pike Data Sheet

Certificates

EN ISO 11612 and EN 1149-5

EN 61482-1-2

EN 14362-1 EN 14362-1




Applications

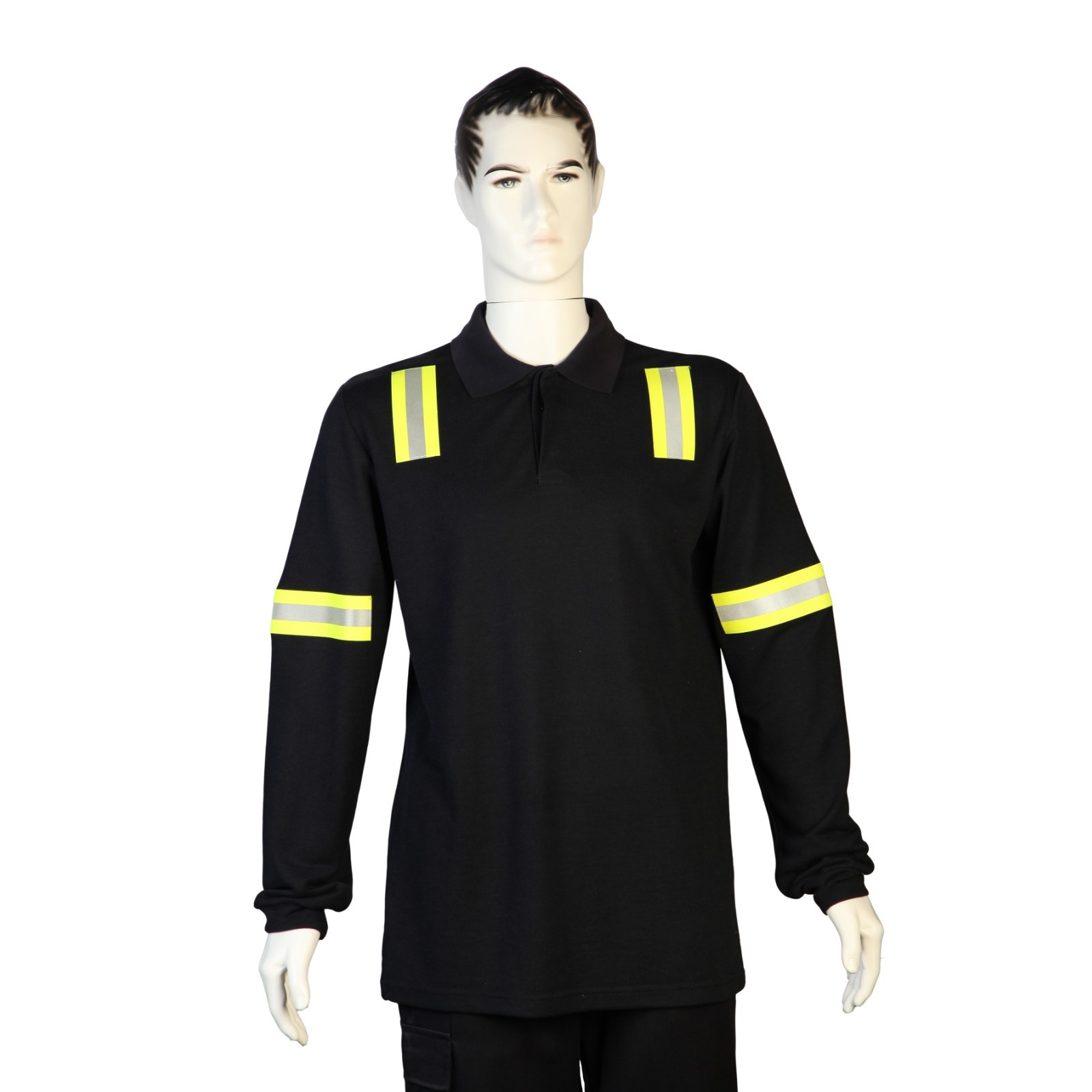

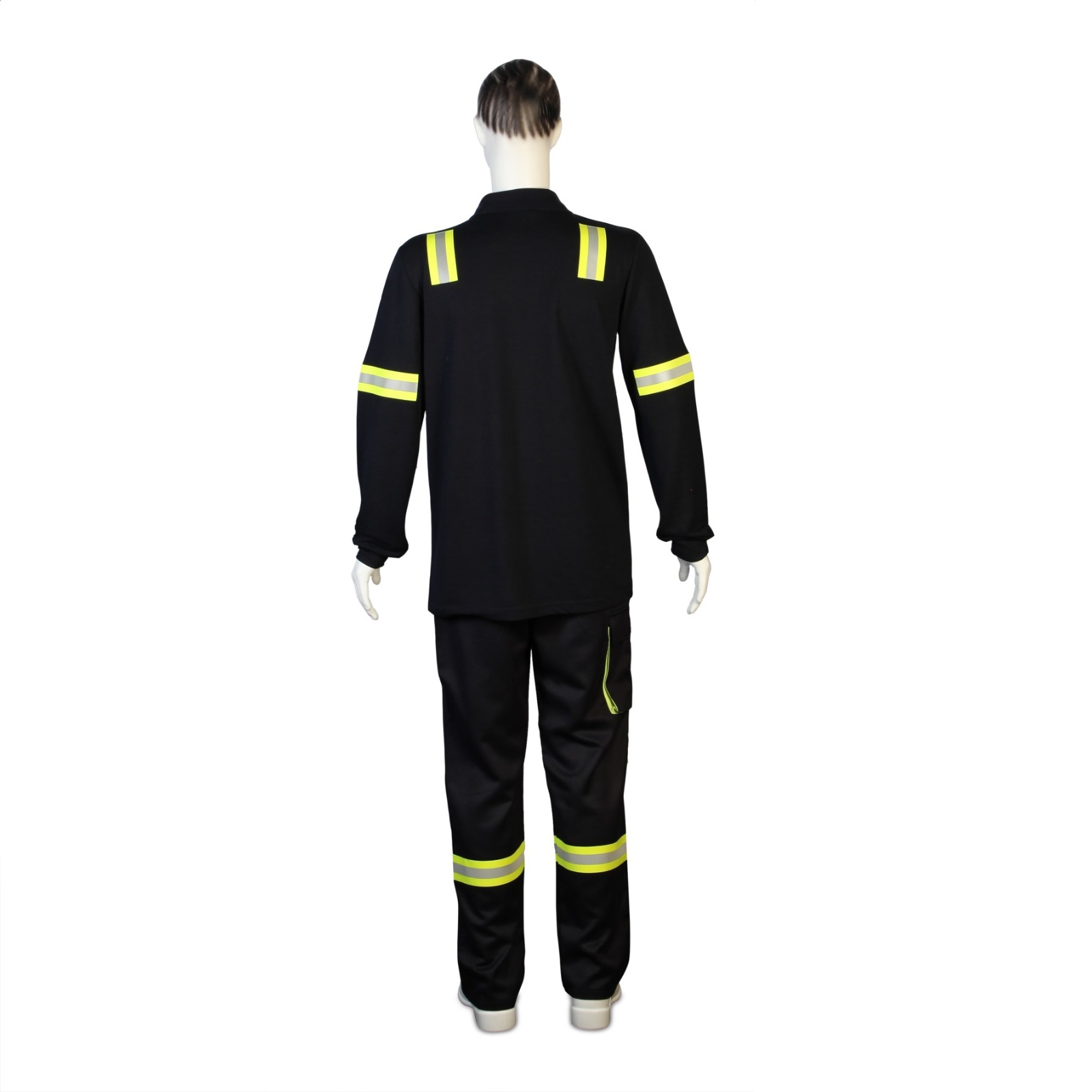

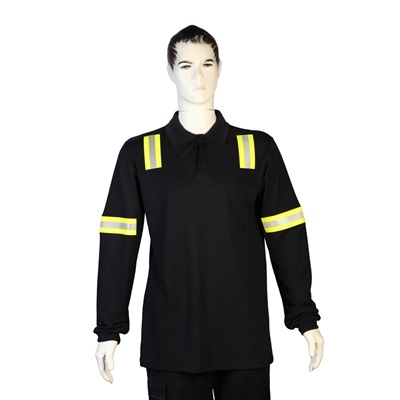

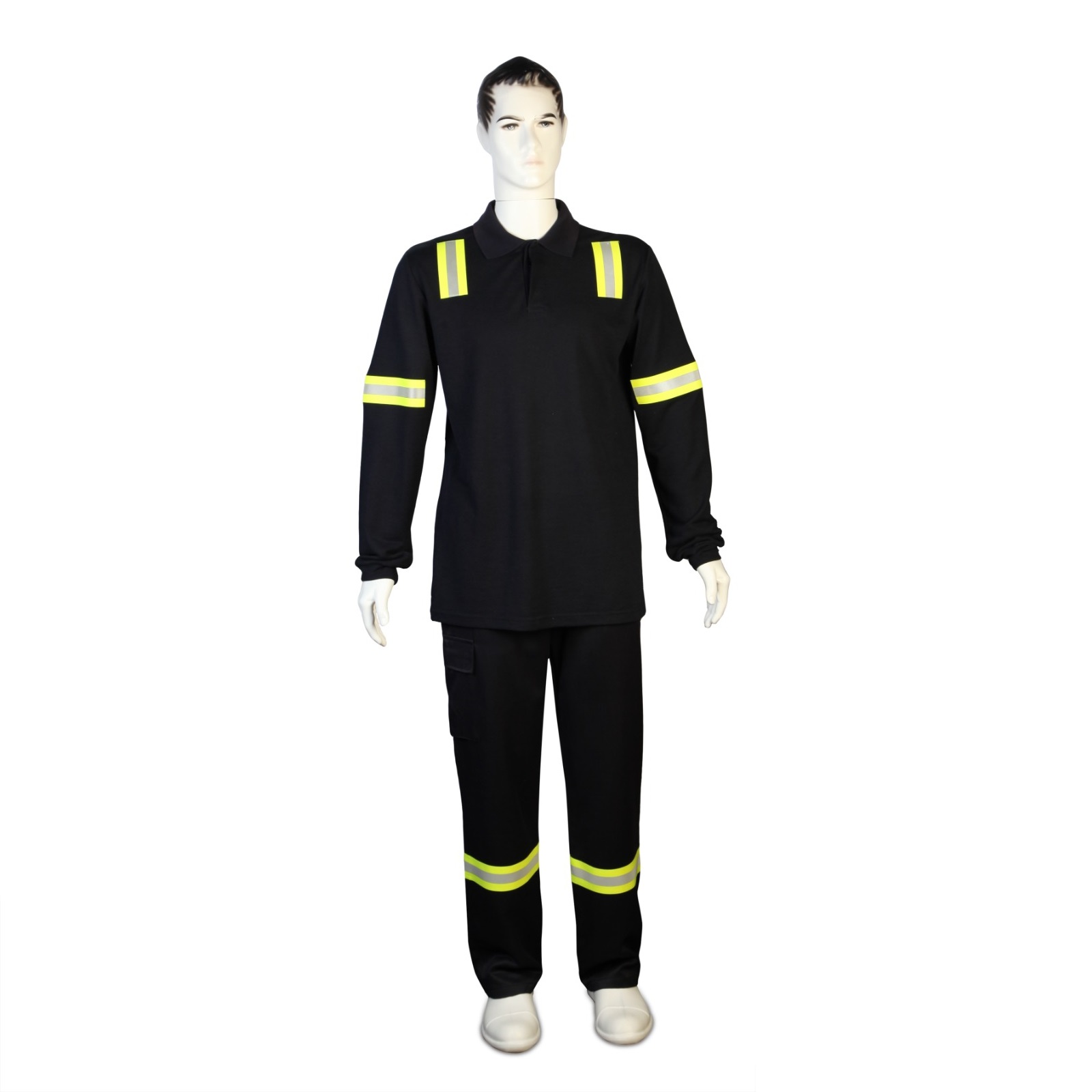

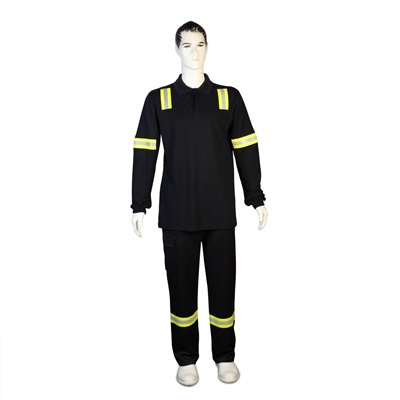

Flame Retardant Aramid Long Sleece Knit Shirt Flame Retardant Aramid Long Sleece Knit Shirt Flame Retardant Aramid Long Sleece Knit Shirt

Functions

Oeko Tex Standard 100

EN  1149 EN 11612 EN 61482




Care Instructions

40'C Machine Wash Chlorine Based Bleaching Can Be Tumble Dried On Low Heat Setting Maximum 150'C Warm Iron Suitable for Dry Cleaning


Colors and Article Numbers

  Navy - STANDART - Aramid D50 Pike - 5689
  Grey - STANDART - Aramid D50 Pike - 5690
